Technical data

Nominal power (kW) 7.0
Heating power range (kW) 3.3 – 9.9
Thermal efficiency (%) 71.0
The diameter of the exhaust outlet (mm) 150
Meets ECODESIGN criteria No.
Intended for recuperation. No.
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 82,0
CO emission (at 13% O 2) ≤ reported in% 0.15
Flue gas temperature (℃) 316,0
Max log length (cm) 40
Pollen emission (dust) (mg / Nm 3 ) 67.0
Compliance with the BImSchV 2 standard. No.
Energy Efficiency Index EEI 93.66
Minimum required active area of ​​outlet grilles (cm 2 )≥ 700
Minimum required active field of inlet grilles (cm 2 )≥ 500
The type of glazing is simple
Opening the door to the left
Material Steel

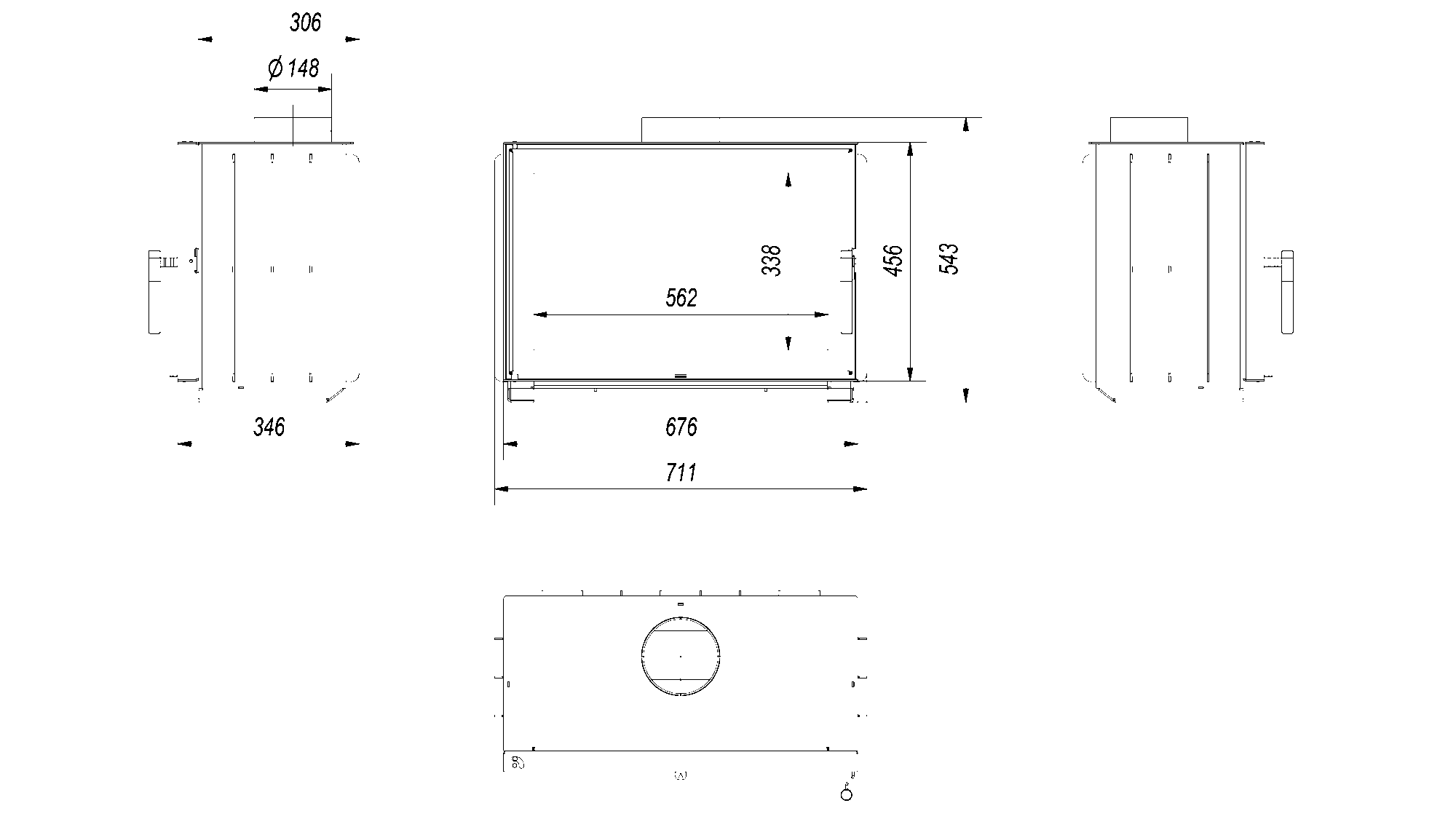

Width (cm) 67.60
Height (cm) 54,30
Depth (cm) 30.60
Air intake No
Combustion chamber lining Yes
Ash box No.
Decorative glass pane No.
