Technical data

Nominal power (kW) 8.0
Heating power range (kW) 5.5 – 10.5
Thermal efficiency (%) 78.0
The diameter of the exhaust outlet (mm) 150
Meets ECODESIGN criteria Yes
Intended for recuperation.Yes
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 106.0
CO emission (at 13% O 2) ≤ reported in% 0.08
Flue gas temperature (℃) 265.0
Max log length (cm) 25
Pollen emission (dust) (mg / Nm 3 ) 39.0
Compliance with the BImSchV 2 standard. Yes
Energy Efficiency Index EEI 102.79
The type of glazing Half Round
Opening the door to the left
The material is made of steel, tile

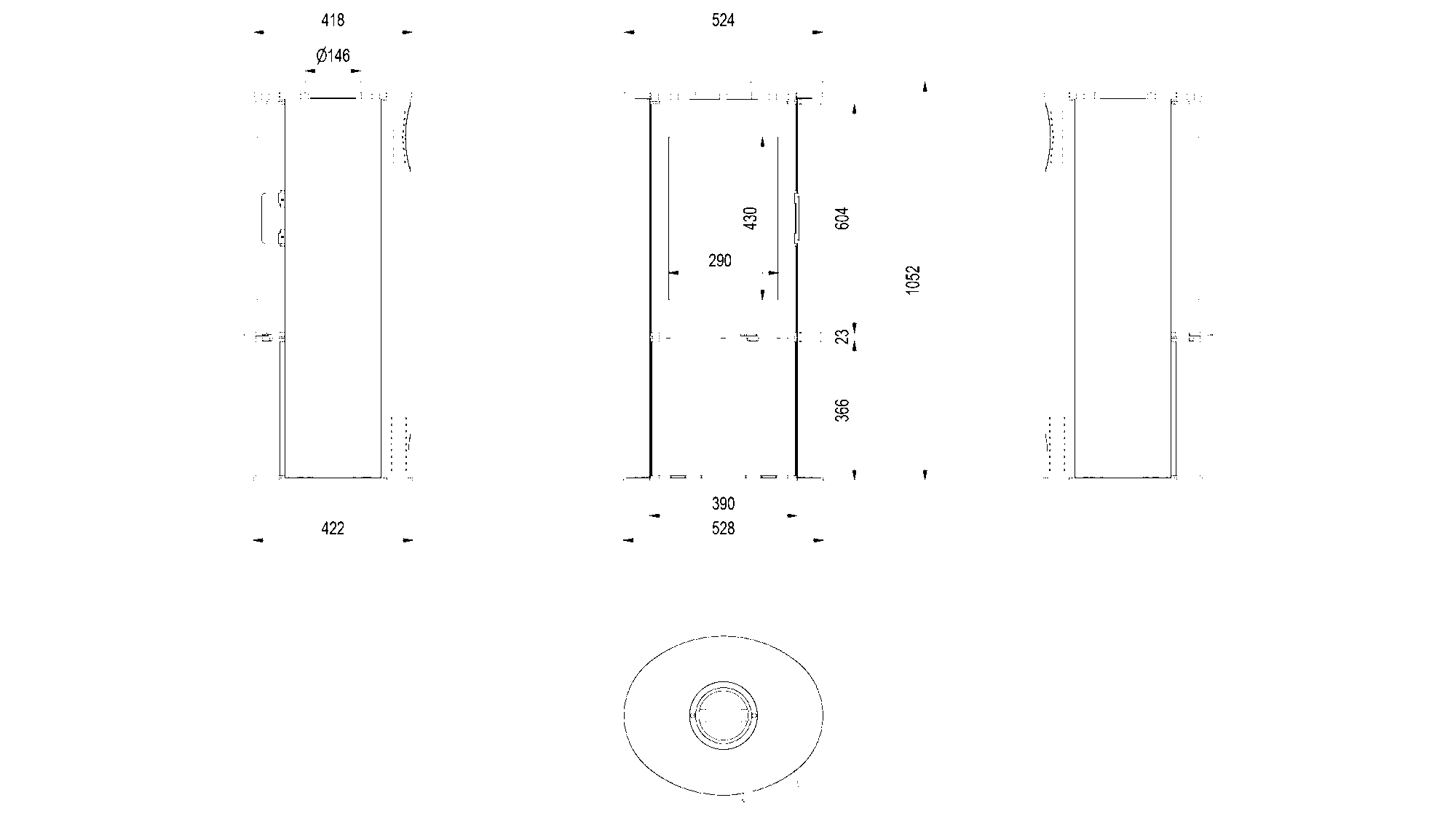

Width (cm) 52.80
Height (cm) 105.20
Depth (cm) 42.20
Air intake Yes
Combustion chamber lining Yes
Ash box Yes
Decorative glass pane No.
ASDP – automatic control of air supply No.
Turbine TURBOFAN No.
Water panel No.
