Technical Specifications

Rated output (kW) 9,0
Range of heating power (kW) 5.0 – 11.0
Efficiency (%) 75,0
Exhaust outlet diameter (mm) 130
Complies with Ecodesign criteria No
Designed for heat recovery unit No
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 126,0
CO emission (at 13% O 2 ) ≤ given in % 0,19
Flue gas temperature (℃) 385,0
Max log length (cm) 35
Compliance with BImSchV 2 standard No
The energy efficiency index EEI 98,88
Glazing type quadrant
Opening of the doors to the left
Material cast iron

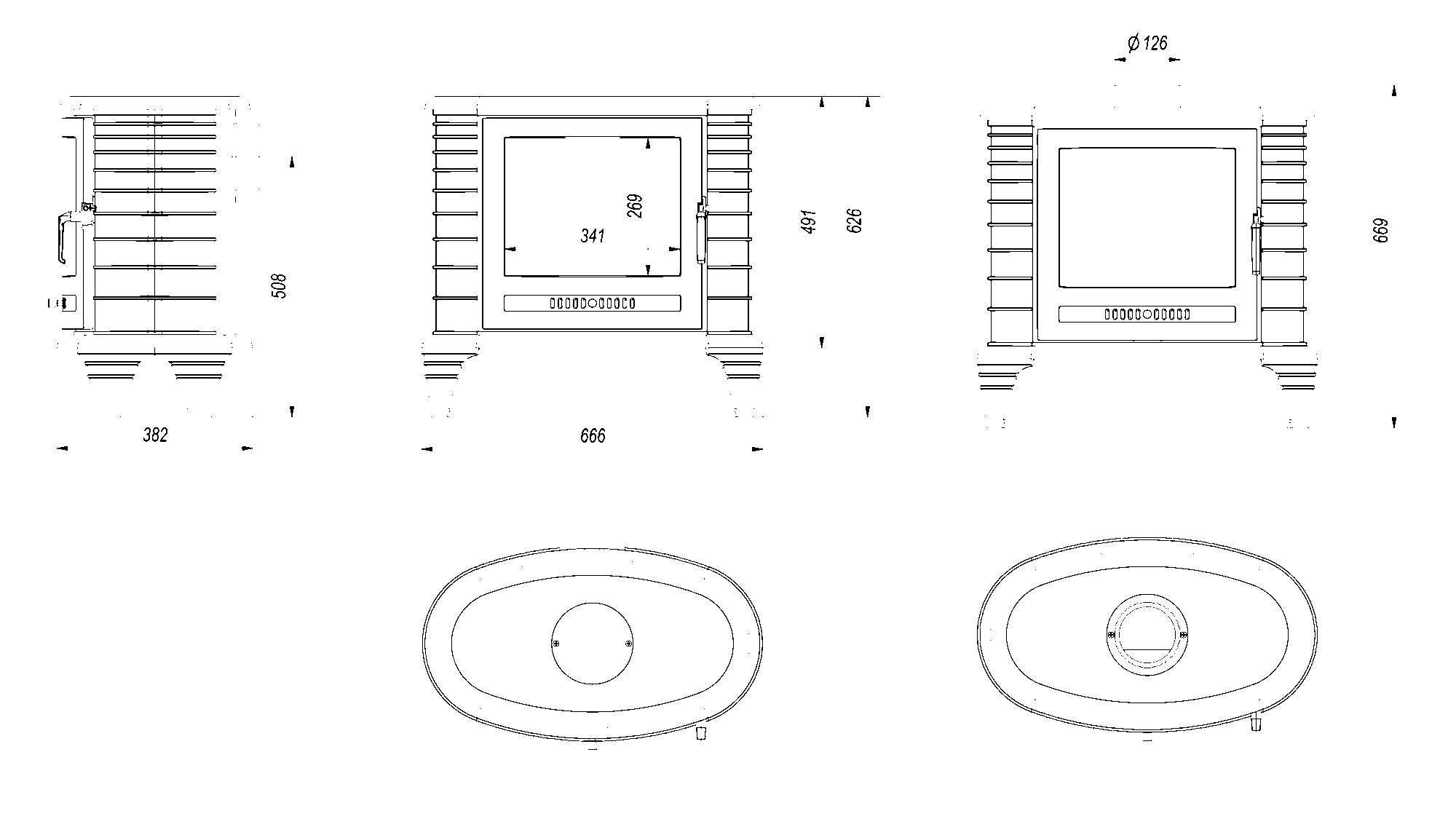

Width (cm) 66,60
Height (cm) 62,60
Depth (cm) 38,20
External air inlet No
The liner of the combustion chamber No
Ashpan Yes
Decorative printed glass No
ASDP – automatic control of the air supply No
Turbine TURBOFAN No
Water panel No
