ARKE 95

ARKE 95

14kW

Kratki Stoves

Technical Specifications

Rated output (kW) 14,0
Range of heating power (kW) 6.0 – 16.5
Efficiency (%) 83,0
Exhaust outlet diameter (mm) 200
Complies with Ecodesign criteria Yes
Designed for heat recovery unit No
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 154,0
CO emission (at 13% O 2 ) ≤ given in % 0,10
Flue gas temperature (℃) 195,0
Max log length (cm) 50
Emission of dust (mg/Nm 337,0
Compliance with BImSchV 2 standard Yes
The energy efficiency index EEI 109,32
The minimum active field of exhaust grilles (cm 2 )≥ 900
The minimum active field of inlet grilles (cm 2 )≥ 700
Glazing type straight
Opening of the doors to the left
Material steel

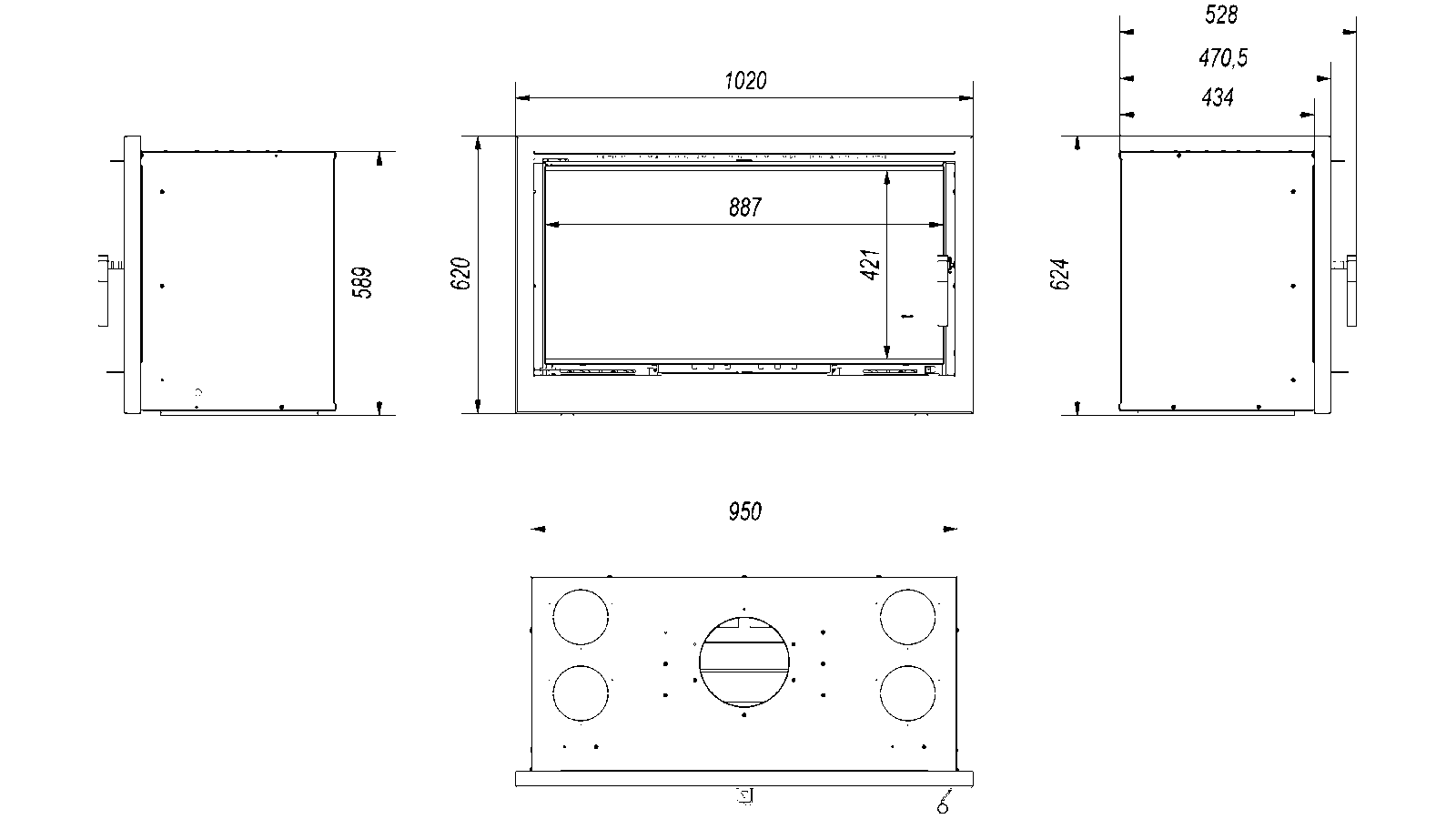

Width (cm) 102,00
Height (cm) 62,00
Depth (cm) 47,00
External air inlet No
The liner of the combustion chamber Yes
Ashpan Yes
Decorative printed glass Yes
Wydajność wentylatorów (m3/h) 372
Rated input power (W) 56
Rated voltage (V) 230
Noise (dB) 39
