Technical data

Nominal power (kW) 9.0
Heating power range (kW) 5.0 – 11.0
Thermal efficiency (%) 75.0
The diameter of the exhaust outlet (mm) 130
Meets ECODESIGN criteria No.
Intended for recuperation .No.
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 125.0
CO emission (at 13% O 2) ≤ reported in% 0.19
Flue gas temperature (℃) 385,0
Max log length (cm) 35
Compliance with the BImSchV 2 standard. No.
EEI energy efficiency rate 98.88
The type of glazing Half Round
Opening the door to the left
Material of cast iron

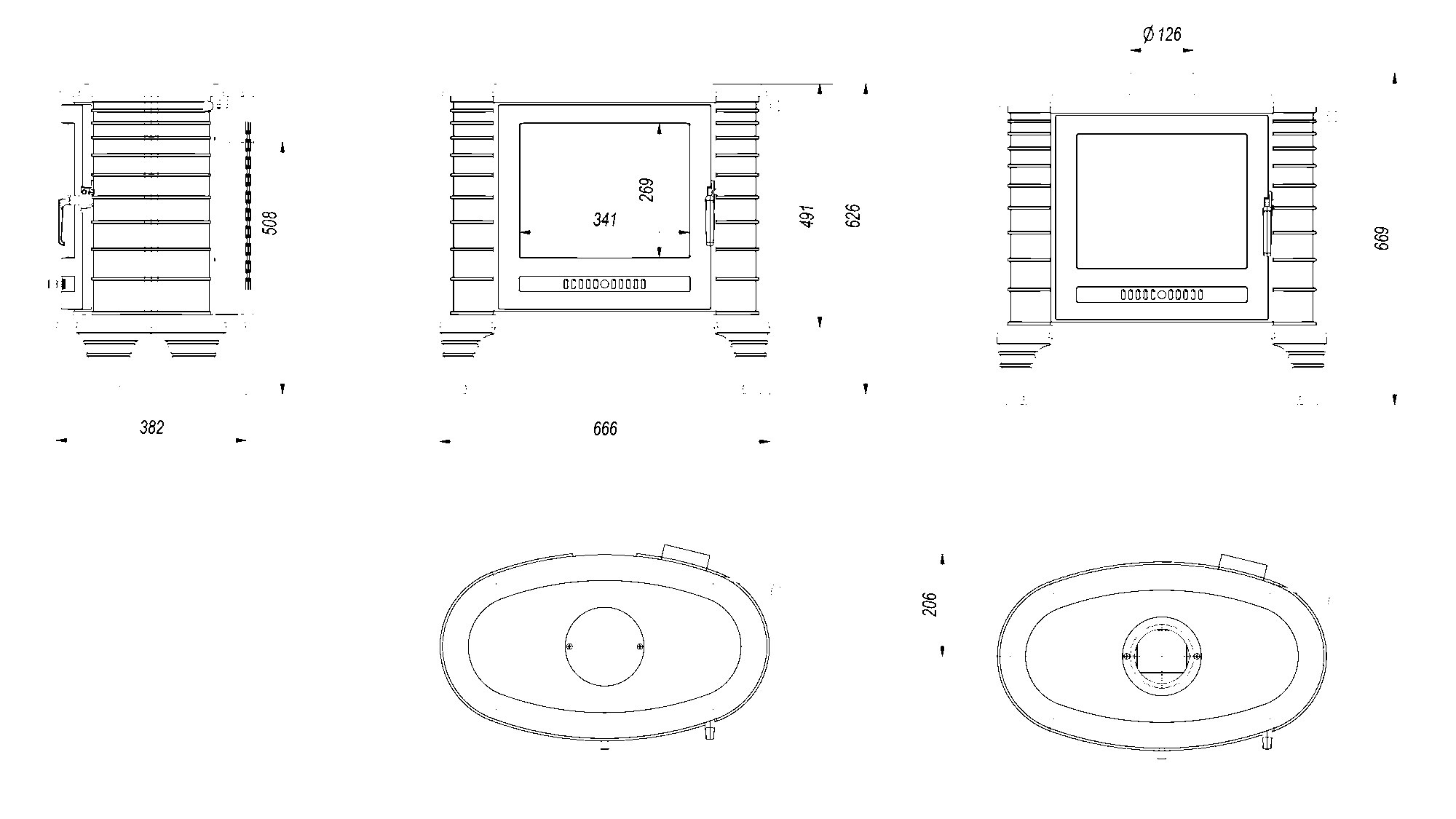

Width (cm) 66.60
Height (cm) 62.60
Depth (cm) 38.20
Air intake No
The combustion chamber lining. No.
Ash box Yes
Decorative glass pane No.
ASDP – automatic control of air supply Yes
Turbine TURBOFAN No.
Water panel No.
