MBA 17 left BS

MBA 17 left BS

17kW

Kratki Stoves

Technical Specifications

Rated output (kW) 17,0
Range of heating power (kW) 8.0 – 21.0
Efficiency (%) 80,0
Exhaust outlet diameter (mm) 200
Complies with Ecodesign criteria Yes
Designed for heat recovery unit Yes
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 238,0
CO emission (at 13% O 2 ) ≤ given in % 0,09
Flue gas temperature (℃) 250,0
Max log length (cm) 50
Emission of dust (mg/Nm 335,0
Compliance with BImSchV 2 standard Yes
The energy efficiency index EEI 105,40
The minimum active field of exhaust grilles (cm 2 )≥ 1000
The minimum active field of inlet grilles (cm 2 )≥ 800
Glazing type lateral
Opening of the doors to the left
Material steel

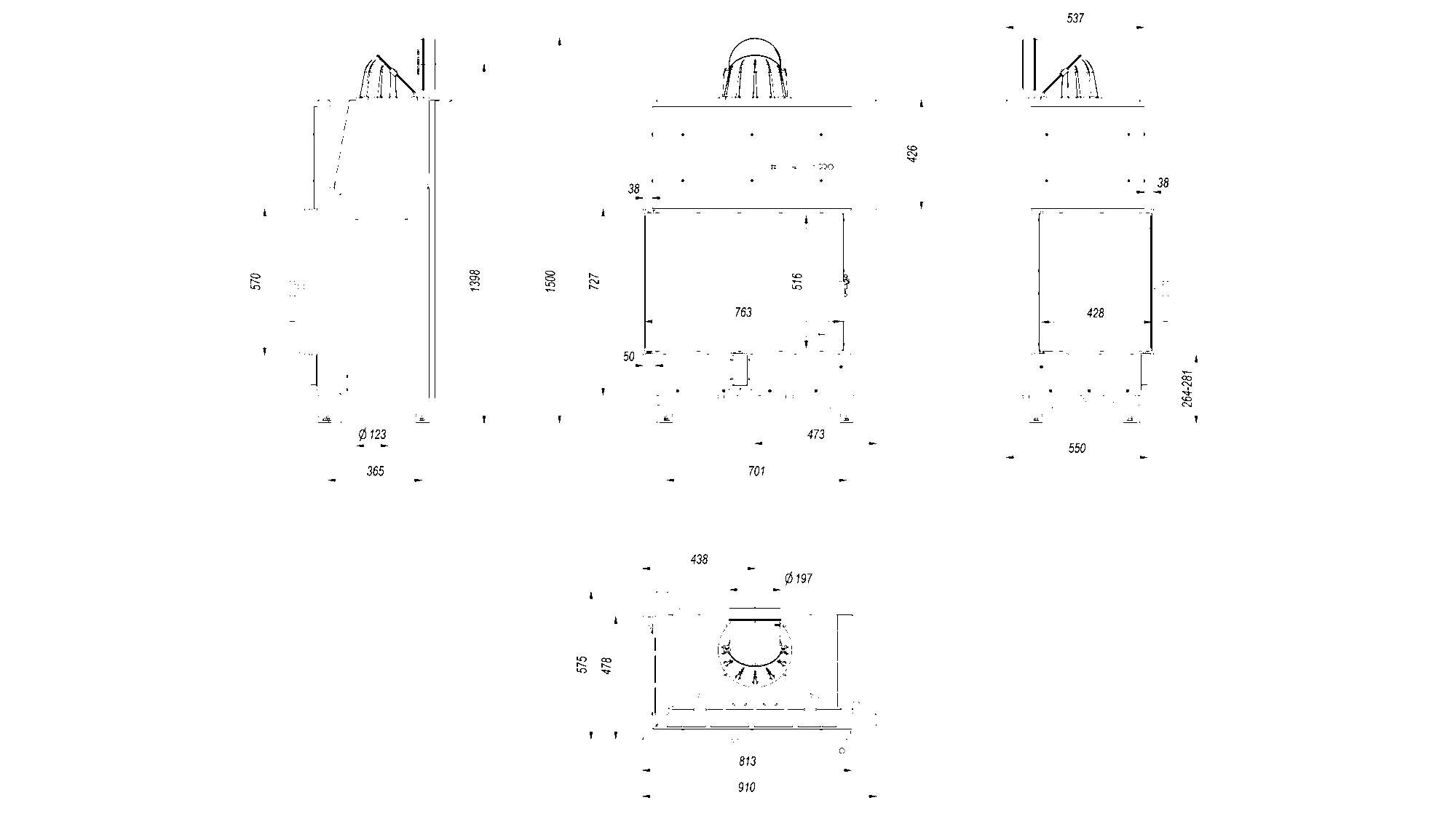

Width (cm) 90,50
Height (cm) 150,00
Depth (cm) 53,70
External air inlet Yes
The liner of the combustion chamber Yes
Ashpan No
Decorative printed glass Yes
