Technical Specifications

Rated output (kW) 15,0
Average power of the water (kW) 8,0
Range of heating power (kW) 6.0 – 18.0
Efficiency (%) 83,0
The maximum operating pressure (bar) 2,0
Exhaust outlet diameter (mm) 200
Complies with Ecodesign criteria Yes
Designed for heat recovery unit Yes
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 306,0
Water capacity (l) 42,0
CO emission (at 13% O 2 ) ≤ given in % 0,10
Flue gas temperature (℃) 210,0
Max log length (cm) 50
Emission of dust (mg/Nm 3) 7,0
Compliance with BImSchV 2 standard Yes
The energy efficiency index EEI 109,30
Glazing type straight
Opening of the doors to the left
Material steel

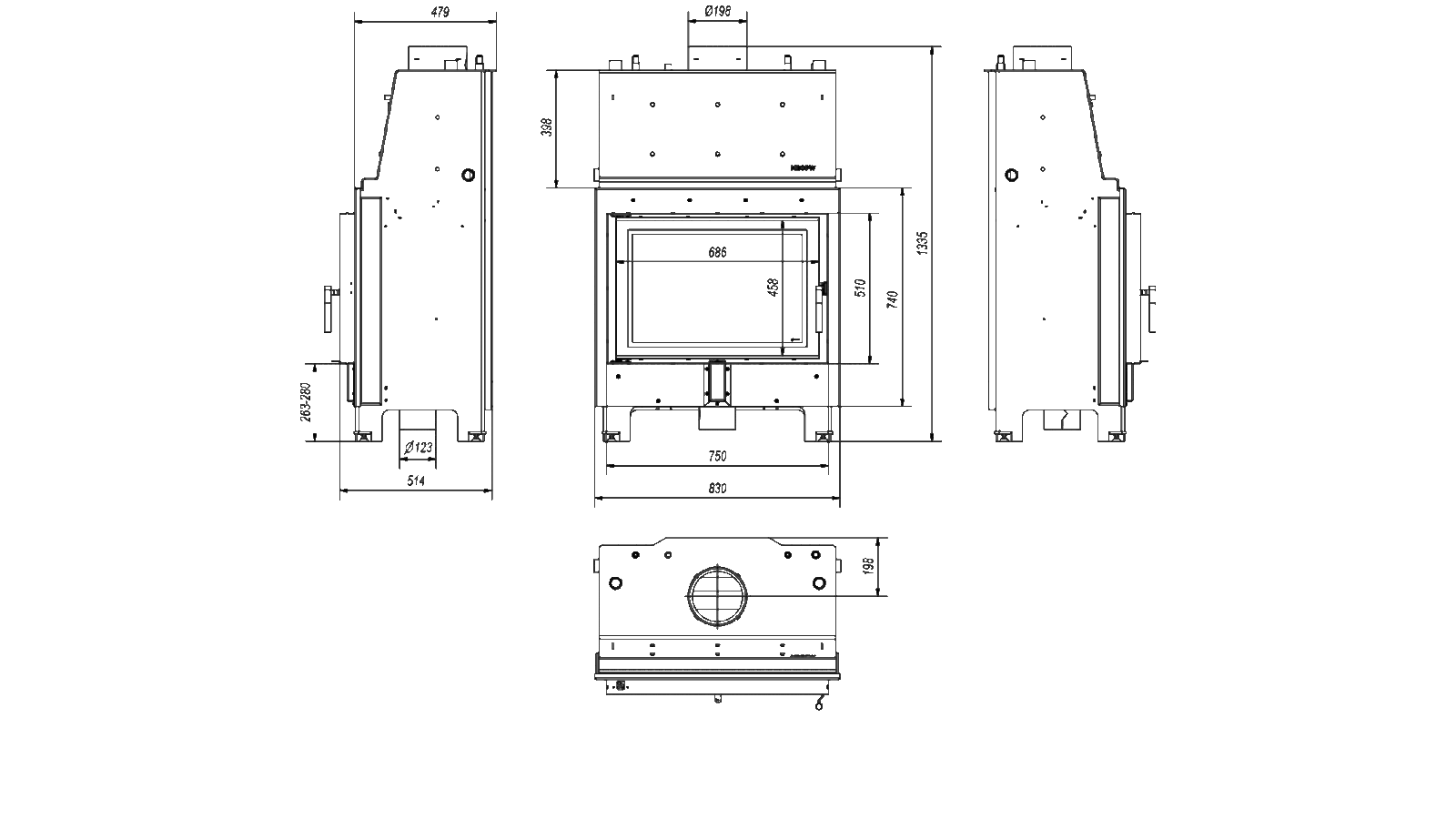

Width (cm) 83,00
Height (cm) 133,50
Depth (cm) 47,90
External air inlet Yes
The liner of the combustion chamber Yes
Ashpan No
Decorative printed glass Yes
Coil Yes
