Technical Specifications

Rated output (kW) 9,0
Range of heating power (kW) 4.0 – 11.0
Efficiency (%) 84,0
Exhaust outlet diameter (mm) 200
Complies with Ecodesign criteria Yes
Designed for heat recovery unit Yes
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 235,0
CO emission (at 13% O 2 ) ≤ given in % 0,09
Flue gas temperature (℃) 192,0
Max log length (cm) 30
Emission of dust (mg/Nm 322,0
Compliance with BImSchV 2 standard Yes
The energy efficiency index EEI 105,40
The minimum active field of exhaust grilles (cm 2 )≥ 700
The minimum active field of inlet grilles (cm 2 )≥ 500
Glazing type lateral
Opening of the doors lift up
Material steel

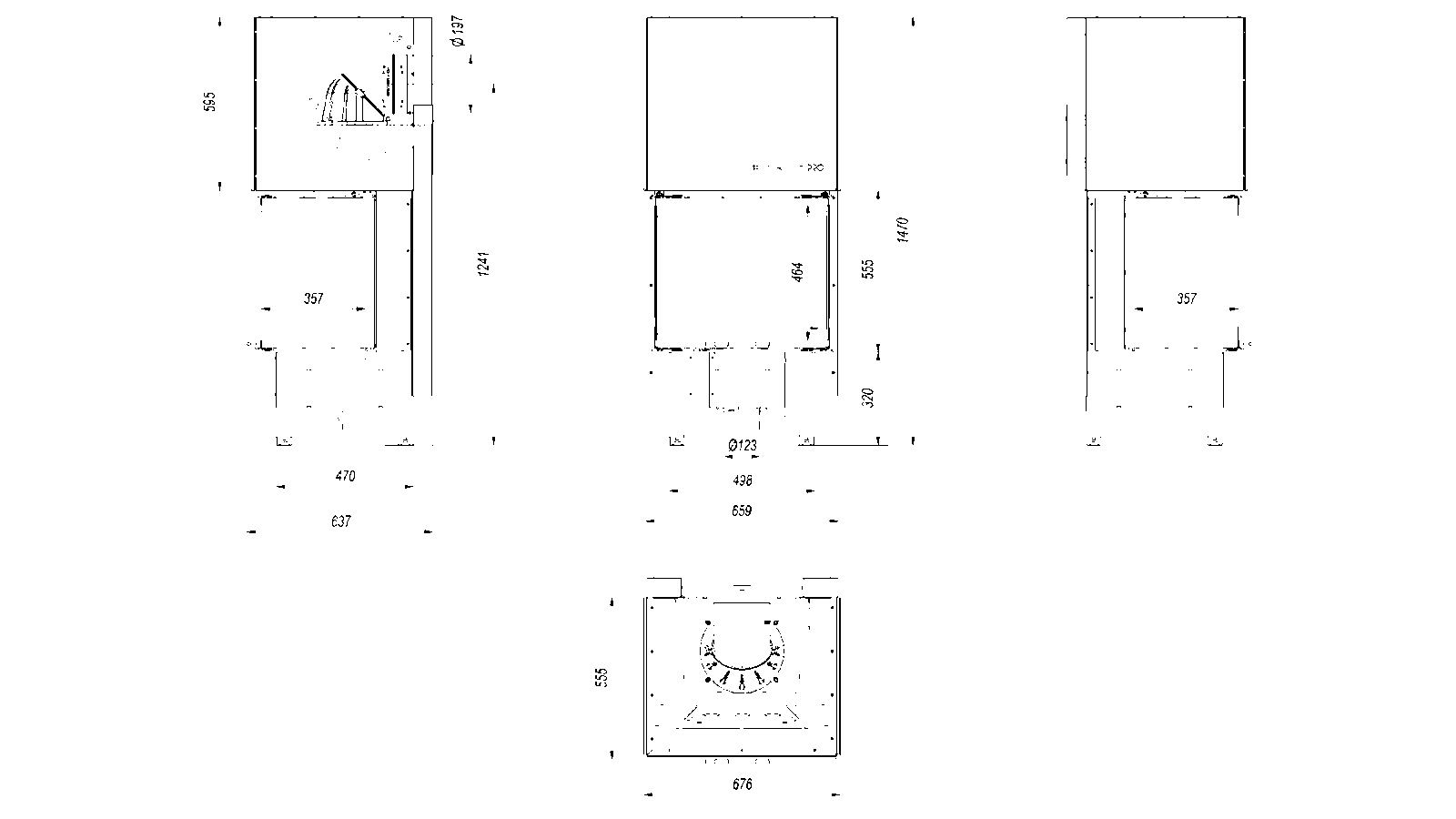

Width (cm) 67,60
Height (cm) 147,00
Depth (cm) 61,90
External air inlet Yes
The liner of the combustion chamber Yes
Ashpan Yes
Decorative printed glass Yes
