OLIWIA PW 22 left BS DECO

///OLIWIA PW 22 left BS DECO

OLIWIA PW 22 left BS DECO

22kW

Kratki Stoves

Technical Specifications

Rated output (kW) 22,0
Average power of the water (kW) 18,0
Range of heating power (kW) 11.0 – 29.0
Efficiency (%) 75,0
The maximum operating pressure (bar) 2,0
Exhaust outlet diameter (mm) 200
Complies with Ecodesign criteria No
Designed for heat recovery unit No
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 222,0
Water capacity (l) 47,0
CO emission (at 13% O 2 ) ≤ given in % 0,25
Flue gas temperature (℃) 390,0
Max log length (cm) 50
Emission of dust (mg/Nm 360,9
Compliance with BImSchV 2 standard No
The energy efficiency index EEI 98,88
Glazing type lateral
Opening of the doors to the left
Material steel, cast iron

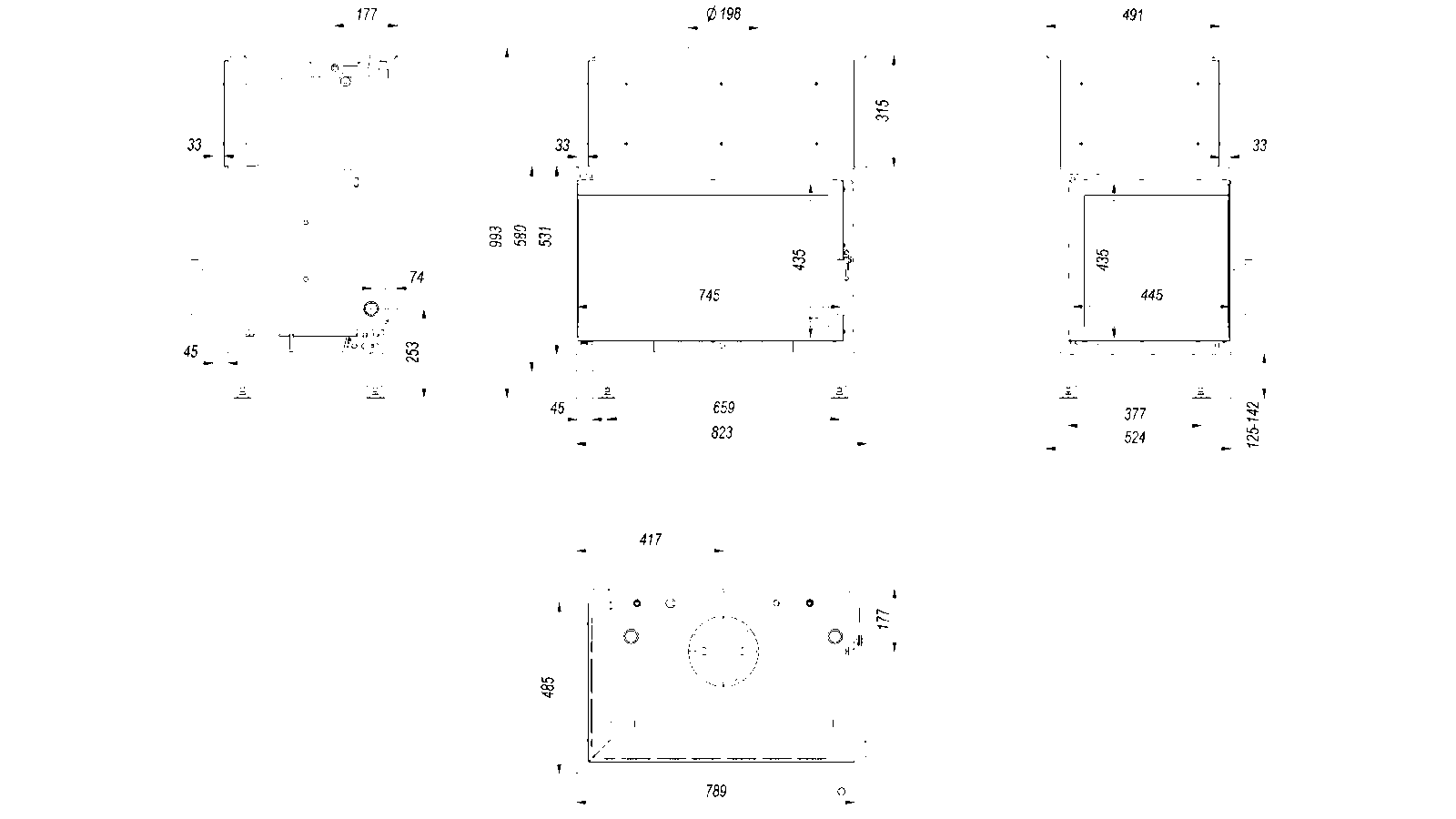

Width (cm) 79,00
Height (cm) 99,30
Depth (cm) 49,10
External air inlet No
The liner of the combustion chamber No
Ashpan Yes
Decorative printed glass Yes
Coil Yes
