Technical Specifications

Rated output (kW) 8,0
Range of heating power (kW) 5.5 – 10.5
Efficiency (%) 78,0
Exhaust outlet diameter (mm) 150
Complies with Ecodesign criteria Yes
Designed for heat recovery unit Yes
Fuel type recommended seasoned hardwood with moisture ≤20%
Weight (kg) 106,0
CO emission (at 13% O 2 ) ≤ given in % 0,08
Flue gas temperature (℃) 265,0
Max log length (cm) 25
Emission of dust (mg/Nm 339,0
Compliance with BImSchV 2 standard Yes
The energy efficiency index EEI 102,79
Glazing type quadrant
Opening of the doors to the left
Material steel, tile

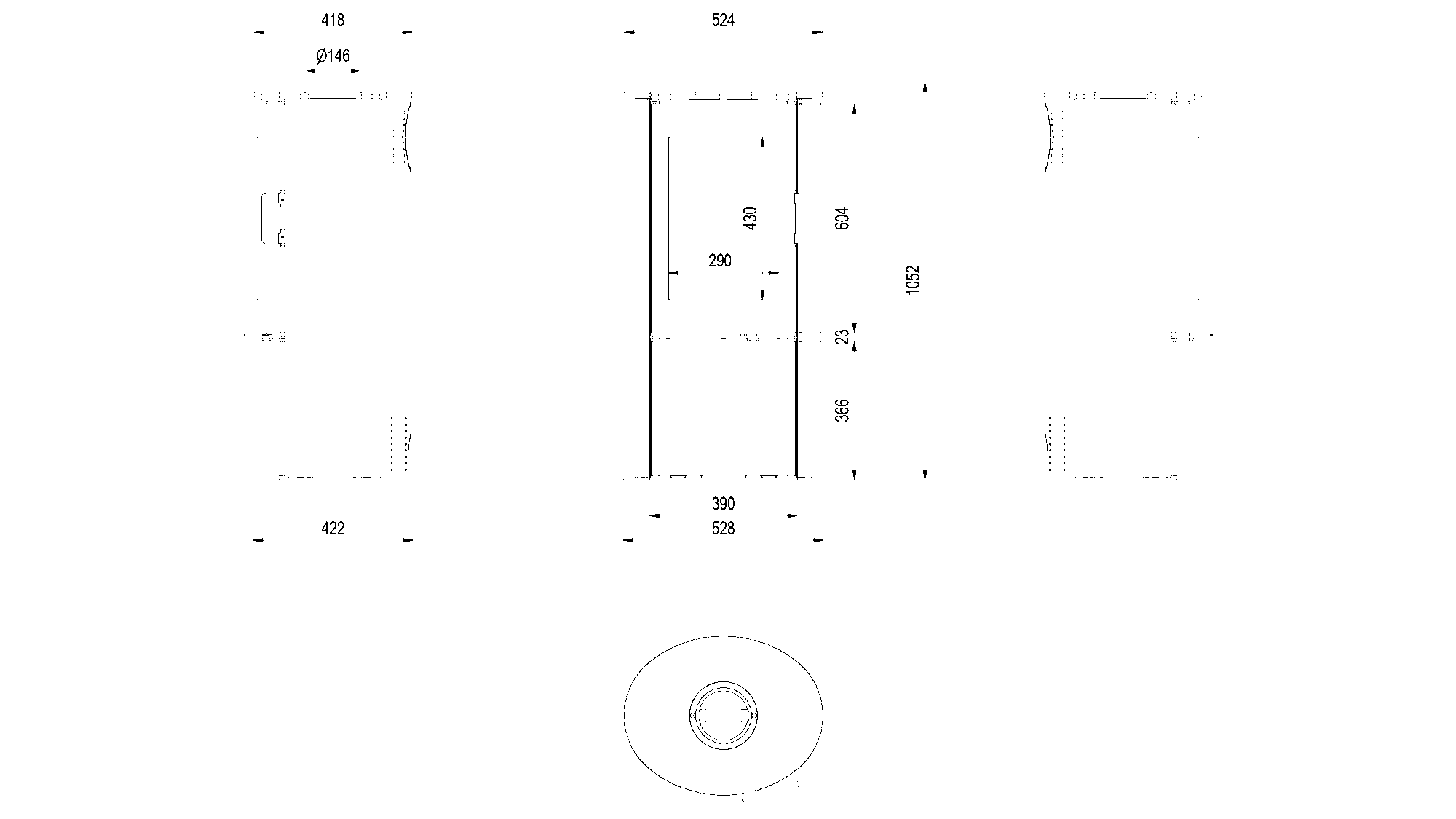

Width (cm) 52,80
Height (cm) 105,20
Depth (cm) 42,20
External air inlet Yes
The liner of the combustion chamber Yes
Ashpan Yes
Decorative printed glass No
ASDP – automatic control of the air supply No
Turbine TURBOFAN No
Water panel No
